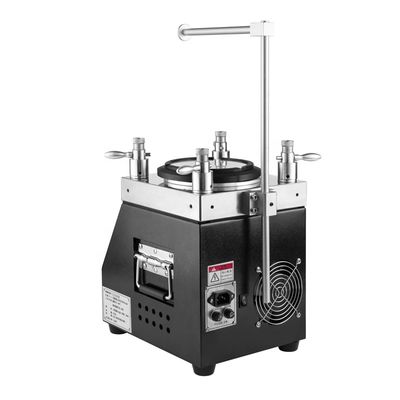

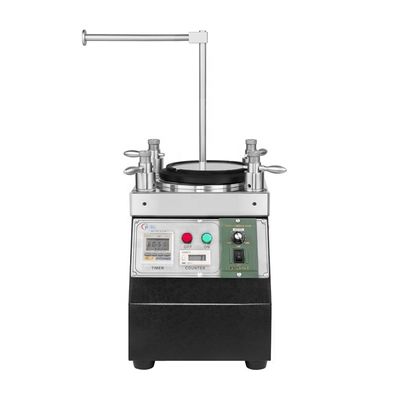

126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity

1
MOQ
$729.65-765.25
قیمت
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
اندازه دستگاه: L 240mm x W 240mm x H 260mm
وزن خالص: 28 کیلوگرم
ورودی برق: 110~230 VAC 50Hz/60Hz
نیروگاه برقی: 126 وات
دمای کار: 10 تا 40 درجه
رطوبت نسبی: 15% ~ 85%
از دست دادن درج: ≤0.20dB (معمولی)
از دست دادن: PC(UPC) ≥55dB، APC ≥60dB
صفحه چرخشی OD: 127 میلی متر (5 اینچ)
تنظیمات زمان: 99 دقیقه و 99 ثانیه (حداکثر)
سرعت چرخش: 140 دور در دقیقه
پرش بشقاب: < 10 ام
پیکربندی فشار: 21 ~ 36 N/cm2
سطح نویز: < 50 دسی بل
لرزش وضعیت کار: 0.25 گرم 5 تا 100 هرتز 10 دقیقه
برجسته کردن:

126W Fiber Optic Patch Cord Production Machine,Adjustable Speed 140RPM Optical Fiber Polishing Machine,48 pcs MU/LC Capacity Fiber Patch Cord Manufacturing Machine

,

Adjustable Speed 140RPM Optical Fiber Polishing Machine

,

48 pcs MU/LC Capacity Fiber Patch Cord Manufacturing Machine
اطلاعات اولیه
محل منبع: گوانگدونگ، چین
نام تجاری: CLX
شماره مدل: CLX-02E، CLX-02E
پرداخت
توضیحات محصول

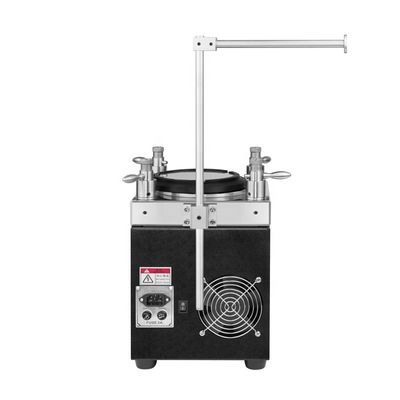

126W Fiber Optic Patch Cord Production Machine Optical Fiber Polishing Machine
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity 0
The Fiber Optical Polishing Machine is based on international universal standards and long-term hands-on experience. It exceeds requirements for GR-326 end face geometry and adapts to four corners compression with new I.P.C. holder technology, yielding the best results in the industry. This machine maintains consistent results whether polishing 1 or 24 connectors, with stable jig installation and compact size. Designed for mass production needs, it processes excellent connector end-faces for LC, SC, ST, FC, MTRJ, E2000 connectors, including angle polishing.
Product Features
  • High-precision fiber optic polishing equipment
  • Quick-change polishing jigs for efficient operation
  • Planet orbit polishing trails with adjustable rotation speed (normally 140RPM)
  • High capacity: 48 pieces for MU/LC connectors, 36 pieces for SC/FC/ST
  • First pass yield for end face quality reaches 98%～100%
  • IPC structure polishing fixture with independent compression for each connector
  • 3D pass rate ≥98% (typically 100% according to IEC standards)
  • Performance metrics: APC return loss ≥60dB, PC(UPC) return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • High-quality stainless steel construction with heat treatment ensures precision and durability (8-10 year lifespan)
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity 1
Product Specifications
Machine Type CLX-02E
Machine Size L 240(mm) × W 240(mm) × H 260(mm)
Net Weight 28kg
Power Input 110~230VAC 50Hz/60Hz
Electric Power 126w
Relative Humidity 15%~85%
Work Temperature 8℃~45℃
O.D. of Rotation Plate 127 mm（5 inch）
Time Settings 99 min 99 sec (Max)
Speed for Rotation Plate 140 rpm
Height of Plate Jumpiness < 10 um
Pressure Configuration 21 ~ 36 N/cm2
Noise Level < 50 dB
Working Status Vibration 0.25g 5~100Hz 10min
Stopping Status Vibration 0.50g 5~100Hz 10min
Get a free Quotation
Polishing Effect

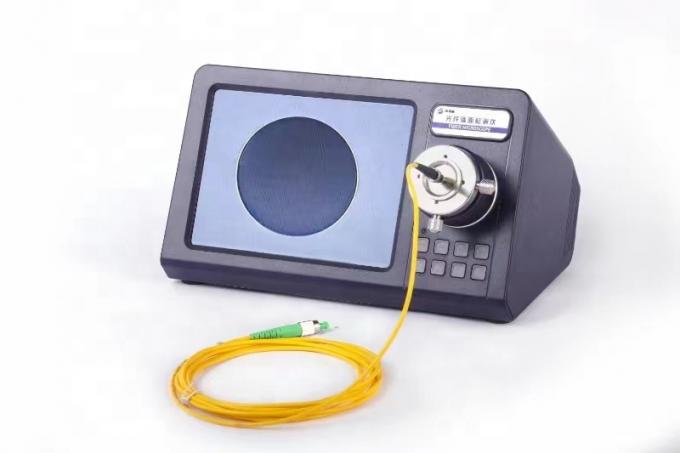

1. Fiber end face inspection results
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity 2

High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges

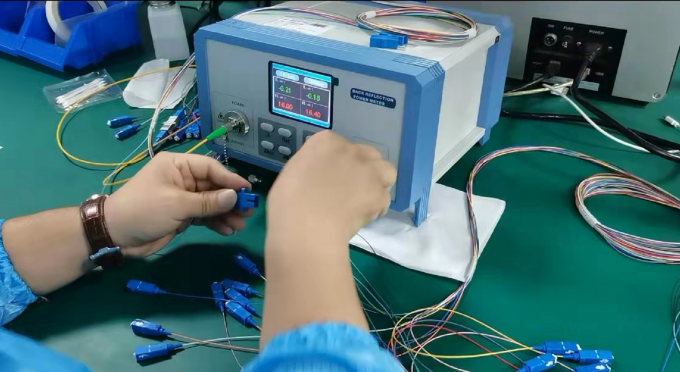

2. ILRL Test Result
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity 3
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥55dB ≥30dB

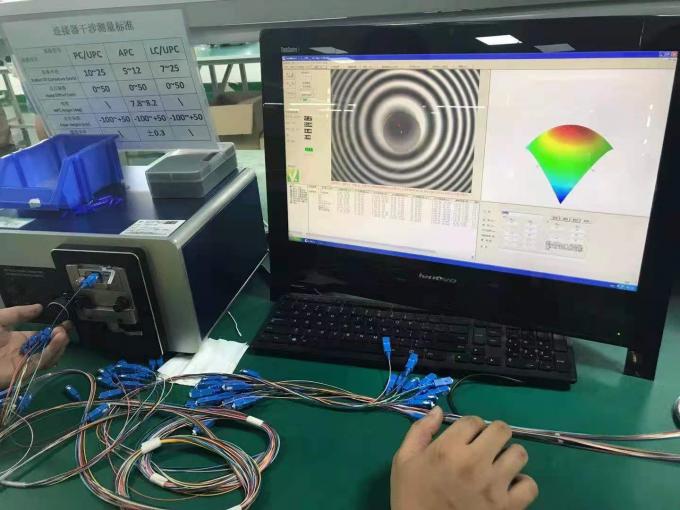

3. Geometry Test Result
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity 4
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Get a free Quotation

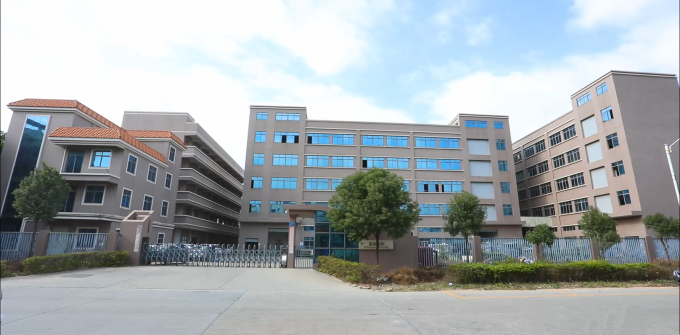

About Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity 5

Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide not only high-quality products and excellent after-sales service, but also free technical support for customers encountering technical problems in fiber optic connector production.

Shipping Information

We typically use DHL, FEDEX, UPS, EMS, TNT or Sea shipping. Customers may provide their courier account for us to select the most cost-effective shipping method based on order quantity.

Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
Shipping takes 4 to 6 days via DHL or FedEx. Time may vary based on order quantity.
5. How do we pay?
We accept multiple payment methods including advance booking, T/T, and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-price accessories.
7. Do you provide customized services?
Yes, we provide customization based on customer requirements.
126W High-precision Fiber Optic Patch Cord Production Machine with Adjustable Speed 140RPM and 48 pcs MU/LC Capacity 6
